Wager Product Gallery

The 1600 Series Sewer Vent is cast from 356-T6 aluminum alloy for light weight construction. The valve is then powder coated a green epoxy that is highly resistant to sewer acids and gases. It is finished with a green coating that blends in nicely with the existing environment. A 1/4" x 1/4" protective mesh screen keeps debris and insects form entering the vent pipe while maintaining the required open area for municipal use ( 1.25:1 ratio ). Alternative materials are available upon request.

Cast in either 356-T6 aluminum alloy, or stainless steel, the 1700 Series allows for ventilation while in the open position. Our patented float design automatically seals off the vent pipe to prevent inflow of water into the lines. A stainless steel insect screen and flame screen keep debris from entering the vent pipe. All hardware is 316 stainless steel, and the valve body is powder coated with a special epoxy that is highly resistant to sewer gases and acids.

The Sewer 2000 Vertical Vent Check Valve is a dual-action float design. The top portion of the valve allows for ventilation in the open position, and prevents inflow of water during floods.
The bottom ball float blocks the out flow of water should the sewer line reach capacity. This is especially important in areas where sewer out-fall lines run next to rivers and streams. The overflow of sewer collection lines in these areas would be devastating to the quality of the water and surrounding land.


The 2100 Mushroom Check Valve mounts vertically with a 2" female thread connection. The body is molded from UV resistant reinforced nylon. The valve has a 1:1 ratio open area allowing for venting in the open position. A polyethylene float rises to a neoprene gasket to prevent inflow of water in flood conditions. Easily retrofitted. The 2100 is typically used to ventilate grinder pump wet wells.

A highly effective media for removing hydrogen sulfide gas (H2S) found in wastewater treatement applications. Porous pellets containing powdered activated carbon, alumina and other binders, impregnated with chemicals to enhance the capacity for removal of hydrogen sulfide. The gases are removed by a means of adsorption, absorption and chemical reaction. The gases are trapped within the pellets, where a chemical reaction changes the gases into a harmless compound, eliminating the possibility of desorption.

Wager’s 1200 Odor Control Roof Vent is designed for rooftop ventilation as a means to equalize the pressure required to keep steady flows of wastewater in toilets and sinks. Odor may become a problem when the resulting H2S gas from a septic system flows to ground levels by means of wind currents or temperature inversions.

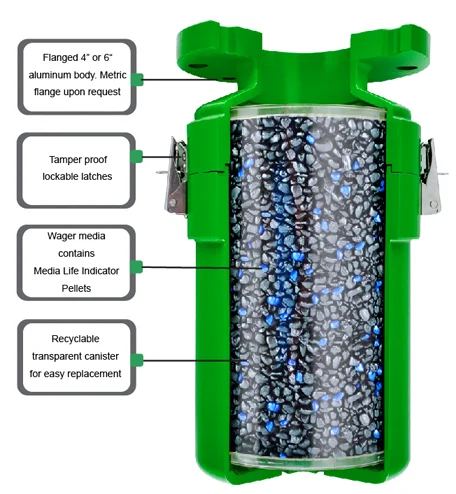

The 1800 Odor Control Vent Valve connects to a candy cane style pipe, and is designed to allow for ventilation in the open position. The valve body may be easily disassembled with two quick release lockable metal latches. The interior of the body contains a canister filled with odor media.

The 1850 is a combined odor control vent valve, with the additional feature of a ball check to prevent water from submerging the media bed, as well as prevent inflow of flood waters into the lines.The 1850 connects to a candy cane style pipe. It is designed to allow for venting in the open position. The interior of the body contains a canister filled with 12 lbs of odor media.

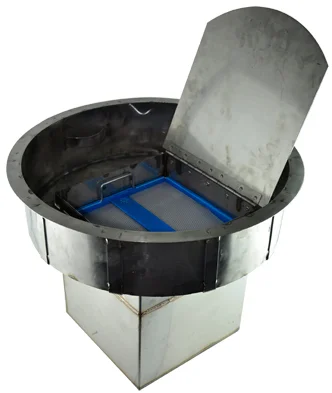

The Wager 3000 Manhole Scrubber effectively removes offensive odors emanating from street-level sewer manholes. The collar of the scrubber rests just below the manhole cover. Odors enter thru the bottom of the unit, and flow upwards thru an odor canister filled with 50 LBS of media designed to remove a variety of odor causing gases such as H2S, Mercaptians, and VOC’S by means of chemical absorption.

The 3100-V is designed for combination Vacuum Air Release Valves. The unit connects directly to an air release valve for odor control, with the added benefit of preventing corrosion in the manhole or vault from the H2S gas. Two air intake valves allow for up to 400 CFM of fresh air to intake directly into the lines without any restrictions from the media bed. This assures continued airflow during pumping sequences. The 3100-V is constructed from aluminum, and is epoxy coated for protection from harsh environments. A canister containing 30 pounds of odor controlling media is located in the interior of the unit.

he water separator directly connects to both the air release valve and to the 3100 odor control valve. Air enters the water separator and a baffle directs the airflow to the bottom of the unit where moisture in the air can accumulate. Once the accumulating water reaches the level of a float in the unit, a drain will open and release the water into the wet well. The dry air proceeds to the top of the water separator, and enters in to the 3100 where the H2S gas is scrubbed with 30 pounds of odor controlling media.

The 2050-SA is designed with a side access to allow for connection where a vent pipe is not available. It is constructed from aluminum, and is epoxy coated grass green.This unit contains 50 LBS (23kg) of odor controlling media. It includes two fresh air intake valves, capable of allowing up to 300 CFM of fresh air per valve.

The 2050 odor control sewer valve is an elongated vertical design to accommodate a deodorizing feature that helps to suppress sewer gas odors. Perfect for residential or commercial locations where complaints regarding odor have become an issue.The 2050 is constructed from aluminum, and is epoxy coated grass green so that it fits nicely into the surrounding environment. It has 4 louvered vents to allow for maximum airflow of deodorized air. H2S gas is directed thru a canister containing 50 lbs (23kg) of odor controlling media.

The 2050-100 Odor Control Valve is designed to allow for ventilation and odor control at lift stations, wet wells, vaults containing ARV’s and forced mains flowing into gravity fed lines. The valve is constructed from aluminum, and is epoxy coated for protection from the harsh outside environment Each valve contains (2) 50lb (23kg) canisters of Wager odor scrubbing media with Media Life indicator pellets. A mist eliminator pad is incorporated into the unit to prevent damage to the media bed from moisture.

The 2050-100 Odor Control Valve is designed to allow for ventilation and odor control at lift stations, wet wells, vaults containing ARV’s and forced mains flowing into gravity fed lines. The valve is constructed from aluminum, and is epoxy coated for protection from the harsh outside environment Each valve contains (2) 50lb (23kg) canisters of Wager odor scrubbing media with Media Life indicator pellets. A mist eliminator pad is incorporated into the unit to prevent damage to the media bed from moisture.

The 2050 odor control sewer valve is an elongated vertical design to accommodate a deodorizing feature that helps to suppress sewer gas odors. Perfect for residential or commercial locations where complaints regarding odor have become an issue. The 2050 is constructed from aluminum and is epoxy coated grass green so that it fits nicely into the surrounding environment. It has 4 louvered vents to allow for maximum airflow of deodorized air. H2S gas is directed thru a canister containing 50 lbs (23kg) of odor controlling media.

The 2050-450-i Odor Control Valve is designed to allow for ventilation and odor control at lift stations, wet wells, vaults containing ARV’s and forced mains flowing into gravity fed lines. The valve is constructed from aluminum, and is epoxy coated for protection from the harsh outside environment.Each valve contains (9) 50lb canisters of media to allow for odor scrubbing where concentrations of H2S gas and accompanying CFM are both very high.
